Your HVAC system is a critical component of your home, keeping you warm during the winter and cool throughout the scorching days of summer. These systems feature many components that work together to control the temperature and enhance your household’s comfort. Understanding how these components work helps you better prepare for necessary maintenance and repairs. Keep reading to discover everything you need to know about the basics of HVAC knowledge.

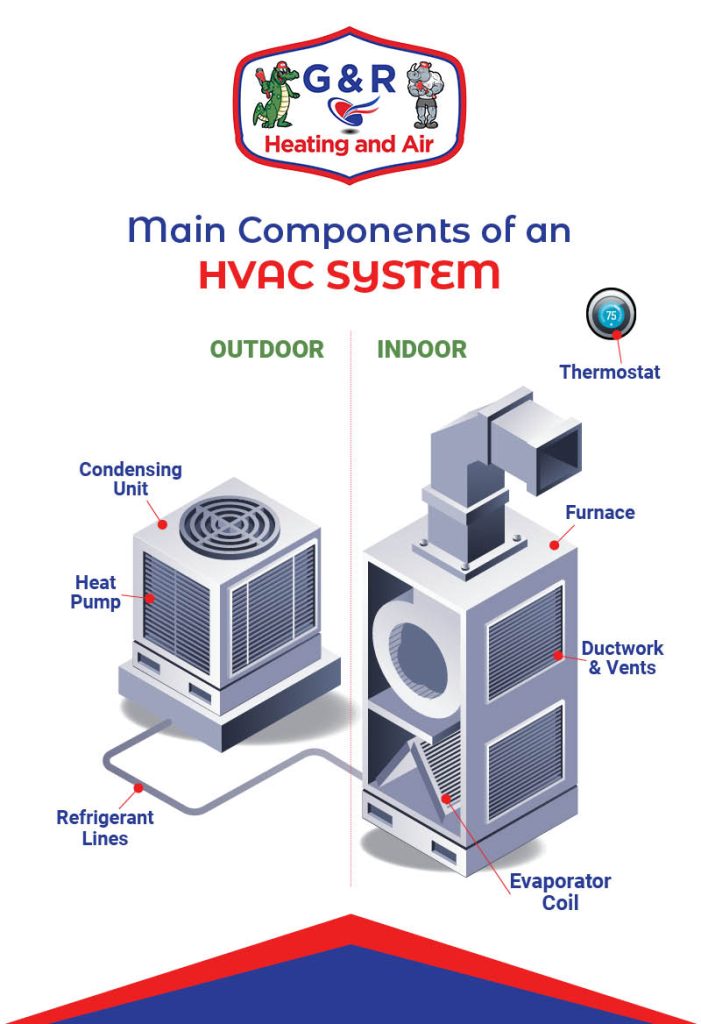

Main Components of an HVAC System
Your home HVAC is a complex system made up of several components. These components each serve a unique purpose, working together to effectively heat or cool your home. Each plays a critical role, from the furnace that generates heat during the chilly winter months to the ductwork that circulates air throughout your home. Explore below the main components of your HVAC system and how they work together to provide year-round comfort.
Furnace
The furnace is the component of the HVAC system responsible for keeping your home warm during the cold winter months. You’ll often find the furnace in your home’s basement, attic, or utility room. Many units operate by burning a fuel source, such as oil, natural gas, or propane, to generate heat. Others use electricity to power heating elements that warm your home.
The main components of a furnace include a heat exchanger, combustion chamber, and blower motor. The combustion chamber burns the fuel to generate heat, which is transferred over the heat exchanger and then pushed out into your ductwork by the blower motor.
Ductwork And Vents
Your duct system is a network of channels that distributes cold and hot air throughout your home. Ducts are typically made of aluminum but may also be polyurethane, plastic, fiberglass, steel, or plastic. The system works with a series of vents that allow air to flow in and out of each room.
Your HVAC pulls air from return vents through the ducts, passing it through filters to remove dust, allergens, and debris. It then heats or cools the air and pushes it back through the supply ducts to be pushed into your home through the vents. Once the air circulates, it re-enters the vents to complete the cycle.
Evaporator Coil
The evaporator coil is found inside your home, typically near the air handler or furnace. It’s a key component in your HVAC system’s cooling process, receiving liquid refrigerant from the compressor. When the refrigerant enters the evaporator coil, it absorbs heat from the warm air in your home and evaporates, transferring it from a liquid into a gas. This process cools the coil and sends the cold air into your home through the ductwork.
The evaporator coil also helps lower humidity levels by hitting what’s known as the dew point. When the warm air and cold coil come into contact, it creates condensation, which is collected and drained away, lowering the humidity in your home.
Condensing Unit
The condensing unit is the outdoor component of your HVAC system. Inside the unit, a compressor receives low-pressure gas refrigerant and compresses it, increasing its temperature and pressure. The warm refrigerant then turns back into a liquid and flows to the condenser coil, releasing heat into the atmosphere.
The now high-pressure liquid refrigerant travels through copper or aluminum tubes to the expansion valve, which reduces its pressure and temperature. It then flows to the evaporator coil to continue the cycle.
Refrigerant Lines
Refrigerant lines are narrow, insulated copper or aluminum tubes that transport refrigerant between your HVAC system’s indoor and outdoor components. They connect the evaporator and condenser coils, allowing the refrigerant to cycle through different phases and transfer heat.
There are two main refrigerant lines: the suction and liquid lines. The suction line carries low-pressure, low-temperature gas refrigerant from the indoor evaporator coil to the outdoor compressor. The liquid line transports high-pressure, high-temperature liquid refrigerant from the condenser coil to the indoor evaporator coil.
Thermostat
The thermostat is the control center of your HVAC system. It lets you set the desired temperature to heat or cool your home. It connects directly to the air conditioner or furnace, signaling it to turn on or off when the temperature falls below or rises above the set point.
It’s common for homes to feature programmable thermostats, which allow you to set varying temperatures throughout the day. Smart thermostats are also available, which you can control through an app on your phone.
Heat Pump
A heat pump is a two-in-one heating and cooling system. It can reverse its operation depending on whether you need cool or warm air. During the winter, the heat pump pulls heat from the outdoor air and transfers it inside to heat your home. In the summer, it reverses the process, extracting heat from the air inside your home and releasing it outside.
Heat pumps are much more energy-efficient than traditional HVAC systems because they transfer heat rather than generate it. They often feature advanced technologies, such as variable-speed compressors, smart controls, and enhanced refrigerant control, which make them more effective and efficient.
What’s the Difference Between HVAC and Air Conditioning?
Your HVAC system is a network of components that work together to heat or cool your home. Air conditioning, on the other hand, is a specific cooling component that removes heat from your house to reduce the indoor temperature.
What Should You Know About HVAC Maintenance?
Annual preventative maintenance is essential to the health of your HVAC system, ensuring it works correctly, extending its lifespan, and improving energy efficiency. A certified technician will thoroughly inspect, clean, and service your system during a professional tune-up to check for proper function and identify any potential issues. They’ll assess all major components, lubricate moving parts, replace the filters, and clean the coils. They’ll also check the refrigerant levels, test the thermostat, and check for adequate airflow throughout your home. By scheduling professional maintenance at least once per year, you’ll prevent unexpected breakdowns, lower your utility bills, and enhance the overall comfort of your home.
